TIMERS AND DUST COLLECTOR CONTROLS SINCE 1972

Features:
All solid state industrial quality construction
Built‐in Differential Pressure Controllers
On‐board LCD indicates pressure and Hi/Low set points
Dual set point for Hold‐Off Operation
LED readout indicates next valve ready to fire
On‐board switch for continuous cleaning mode
Line Surge Protection
4‐20 mA output signal for monitoring of Differential Pressure
DP (Real Time) may be remotely monitored (if desired) for display in another location
Adjustable On/Off times
120 VAC 50/60 Hz, Single Phase
UL Recognized to US and Canadian Standards
1 amp fuse protection
Full 1‐year warranty
Made in the USA

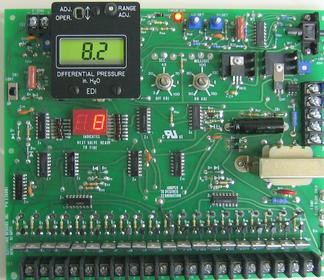

MODEL E10DM1, E20DM1



The E10DM1 and E20DM1 timers come standard with a Built‐in Differential Pressure Controller and can operate as a Hold‐Off or Continuous Cleaning timer. They have a 4‐20 mA output for differential pressure monitoring and also allow for Remote Hold‐Off Capability.

Each timer features High and Low pressure set points and includes an LCD for indication of Pressure, Hi and Low set point controls. Also includes internal Differential Pressure Simulator for easy calibration.
